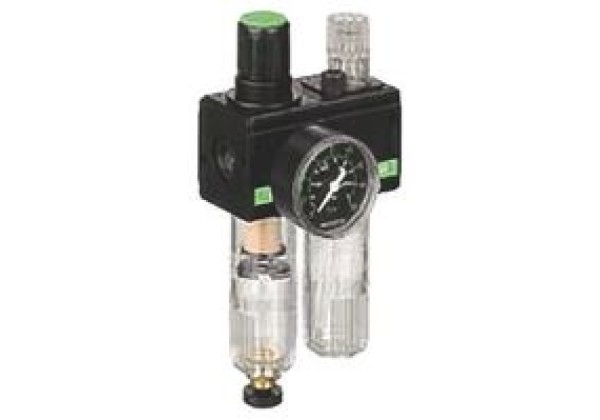

0821300500 Aventics NL2-ACD FR Assembly 5μm G 1/2, 16 bar

Code: 0821300500

Manufacturer Series = NL2-ACD
Port Connection = G 1/2
Drain Type = Semi Automatic
Filtration Size = 5µm
Port Connection Thread Size = 1/2 in
Maximum Operating Pressure = 16 bar
Maximum Ambient Operating Temperature = +60°C
Minimum Process Operating Temperature = -10°C
Minimum Operating Pressure = 1.5bar
Minimum Ambient Operating Temperature = -10°C

NL Series Filter Regulator ; Lubricator plus Gauge. Diaphragm type pressure regulator with relieving air exhaust Temperature range -10 → +60 °C Drain sprung open with pressure off ATEX Certified II 2G2D X
