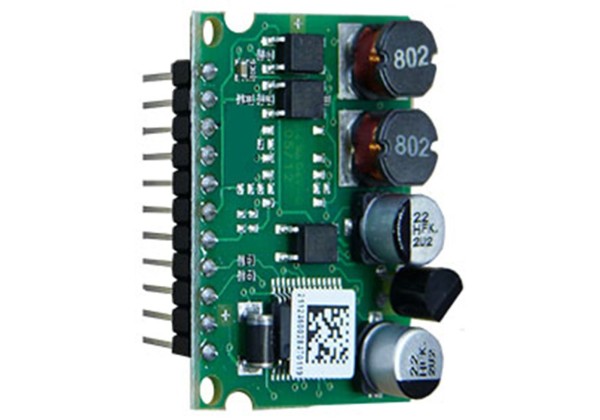

BWR1566 ASi PCB Module, 29,7 mm x 36,5 mm
Brand: Bihl+Wiedemann
Code: BWR1566
ASi PCB Module, 29,7 mm x 36,5 mm, 1 digital input, 1 digital output, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via wiring pins, straight, ASi connection via wiring pins, straight, 1 AB address
| Circuit board dimensions | 29,7 mm x 36,5 mm |
| Inputs digital | 1 |
| Outputs digital | 1 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| PCB connection | wiring pins, straight |
| Coating | no |
| ASi connection | wiring pin, straight |
| ASi address | 1 AB address |
