R978918944 Bosch Rexroth ZDR10VP4-3X/315YMV/12 Pressure reducing valve

Code: R978918944

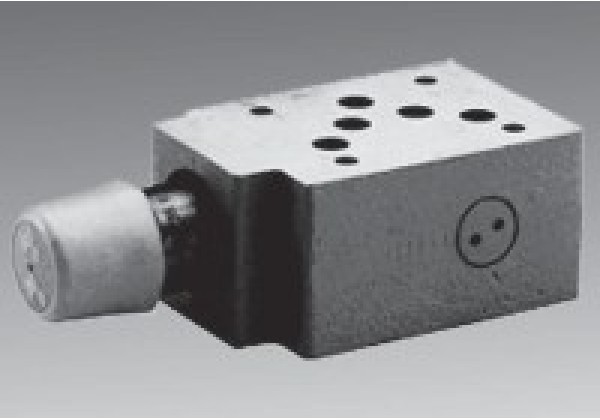

Bosch Rexroth ZDR10VP4-3X/315YMV/12 Pressure reducing valve

Pressure reducing valve, pilot operated, Type ZDR

Function

Pressure valves type ZDR 10 V are pilot operated pressure valves of sandwich plate design. They are used to reduce a system pressure. The valves consist of the cartridge and a housing. The reduced pressure is set via the adjustment element.

Tecnical Details

  • Sandwich plate valve
  • Pressure reducing valve
  • Nominal Size 10
  • pilot operated
  • Pressure reduction in channel P1
  • Adjustment type: Rotary knob
  • Component series 3X
  • Secondary pressure max.: 315 bar
  • Internal control oil supply, external control oil drain
  • without check valve
  • Seal material: FKM
  • Maximum operating pressure: 315 bar
  • Maximum flow: 100 l/min
  • Ambient temperature range: -20 … +80°C
  • Hydraulic fluid temperature range: -20 … +80°C
  • Weight: 2,3 kg
  • Installation position: any

More information:
Weight:
2,3 kg
Working pressure max. (bar):
315 bar
Size:
NG10
Volume flow:
100 l/min
