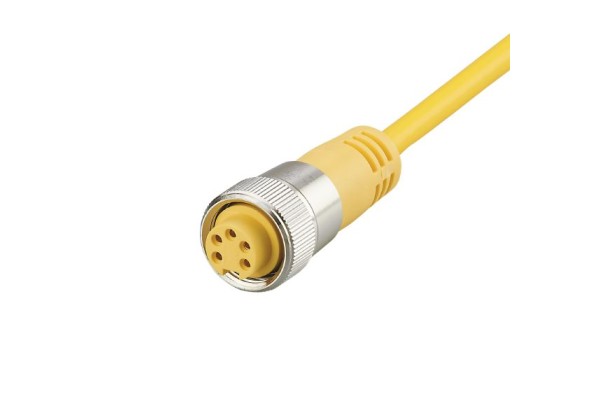

E11246 - ecomat400-ADOGB050PLS0005E05
Brand: IFM Electronic
Code: E11246
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 250 AC |
|---|---|
| Max. current load total [A] | 5 |
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 498.2 |
|---|---|
| Dimensions [mm] | 24 x 24 x 50 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | TPU |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PVC; 5 x 0.75 mm² / AWG 18 |
Electrical connection - socket
| Connection | Connector: 1 x 7/8", straight; coding: A; Moulded body: TPU; Locking: TPU |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11246-00 — 06.03.2003 —
