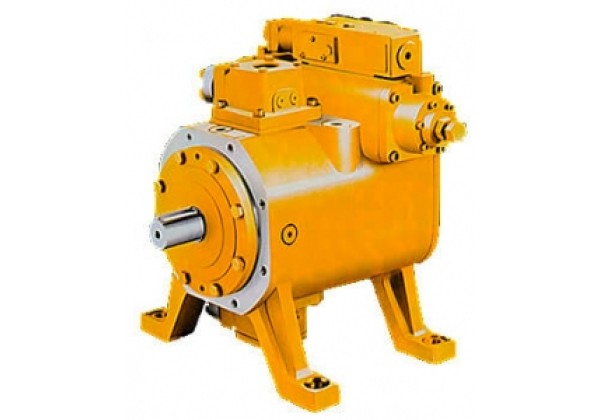

Kawasaki LX (V) / LZ (V) series
Brand: Kawasaki Hydraulics
Code: LX (V) / LZ (V)
LX/LZ series are fixed displacement axial piston pumps of bent axis design.
LXV/LZV series are variable displacement axial piston pumps of bent axis design and have heavy duty bearings to achieve long life.
They can operate for long periods of time under severe conditions: high pressure continuous drive, use of fire resistant fluid, etc.
Features
- High Reliability
- Compatible with fire-resistant fluid
| Model | LX/LZ | LX（V）/LZ（V） | ||||||
|---|---|---|---|---|---|---|---|---|
| 030 | 060 | 090 | 120 | 180 | 260 | 500 | ||
| Displacement (cm3) | 32.4 | 63.4 | 84.3 | 124 | 174 | 260 | 507 | |
| Pressure (MPa) | Rated | 34.3 | ||||||
| Peak | 39.2 | |||||||
| Max Self Priming Speed (min-1) | 1,800 | 1,200 | ||||||
