Adapter M12 x 1 on Sub-D SUBD9-W-CAN+TR-V15S/V15
Brand: Pepperl+Fuchs
Code: SUBD9-W-CAN+TR-V15S/V15

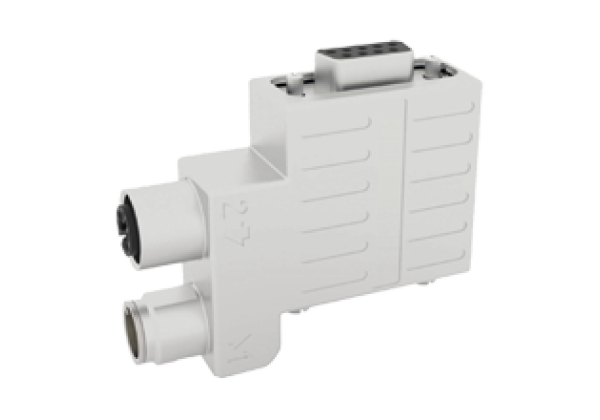

Adapter Sub-D straight 9-pin to M12 plug / M12 socket straight A-coded 4-pin
Datasheet excerpt: Technical data of SUBD9-W-CAN+TR-V15S/V15
| Product Description |
|---|
| Adapter Sub-D straight 9-pin to M12 plug / M12 socket straight A-coded 4-pin |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | socket | |
| Construction type | Sub-D | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 9 | |
| Electrical specifications | ||
| Operating voltage | 24 V DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Fieldbus standard | CAN bus 12 MBit/s | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 Connector Sub-D : IEC 807-2 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Relative humidity | max. 75 % at 25 °C non-condensing | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Plug connector | ||
| Mating cycles | min. 200 | |
| Connector 1 | ||
| Tightening torque | 0.6 Nm | |
| Connector 2 | ||
| Tightening torque | 0.6 Nm | |
| Connector 3 | ||
| Tightening torque | 0.3 Nm | |
| Loosening protection | screws UNC 4-40 | |
| Degree of protection | IP20 | |
| Material | ||
| Plug connector | ||
| Body | Zn alloy | |
| General information | ||
| Note | Switchable terminal resistor according to CAN bus specification | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
